Contract Manufacturing
Film Stretching Technology Introduction
- We offer a wide variety of stretching technologies using multiple types of stretching equipment.
Uniaxial stretching (MD stretching/TD stretching), Sequential biaxial stretching - Advanced quality control is achieved by using online phase difference measuring equipment and visual inspection machines.
- On-line corona treatment (both sides of the film) is also available.
- Selection of protective films inaccordance to customer requirements

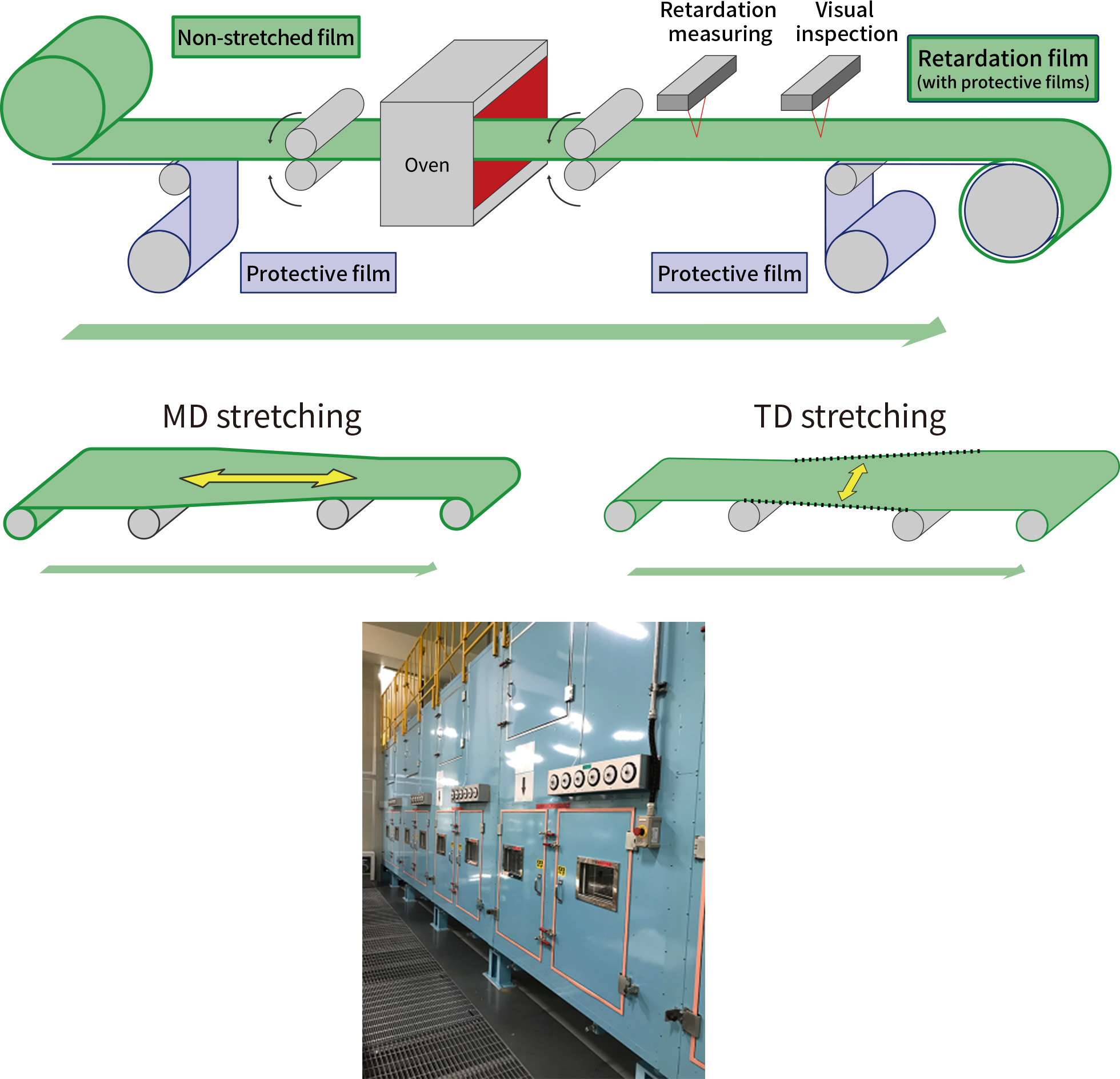

Film Stretching process
Stretching process
| Item | Specifications | |
|---|---|---|
| Longitudinal stretching | Lateral stretching | |
| Line speed | 1.5～30m/min | 1.5～18m/min |
| Stretching temperature | 100～190℃ | 100～190℃ |
| Stretching method | Between rolls | Clip tenter |
| Unwinding film width | 500～1500mm | 500～1500mm (inlet～3z expansion min 250mm) |
| Take-up film width | 1900mm | 1900mm |
| Corona treatment | Yes （～1900mm width） | Yes（～1900mm width) |
