Information and Communication Materials Cover Coat Ink

Product name

Kaneka flexible cover coat

This is an ink-type cover coat material for protecting circuit patterns and insulation of printed circuit boards.
It is possible to achieve heat resistance , flame retardance,/ insulation properties and flexibility required for coverlay films used in flexible printed circuit boards.

Kaneka flexible cover coat

Features

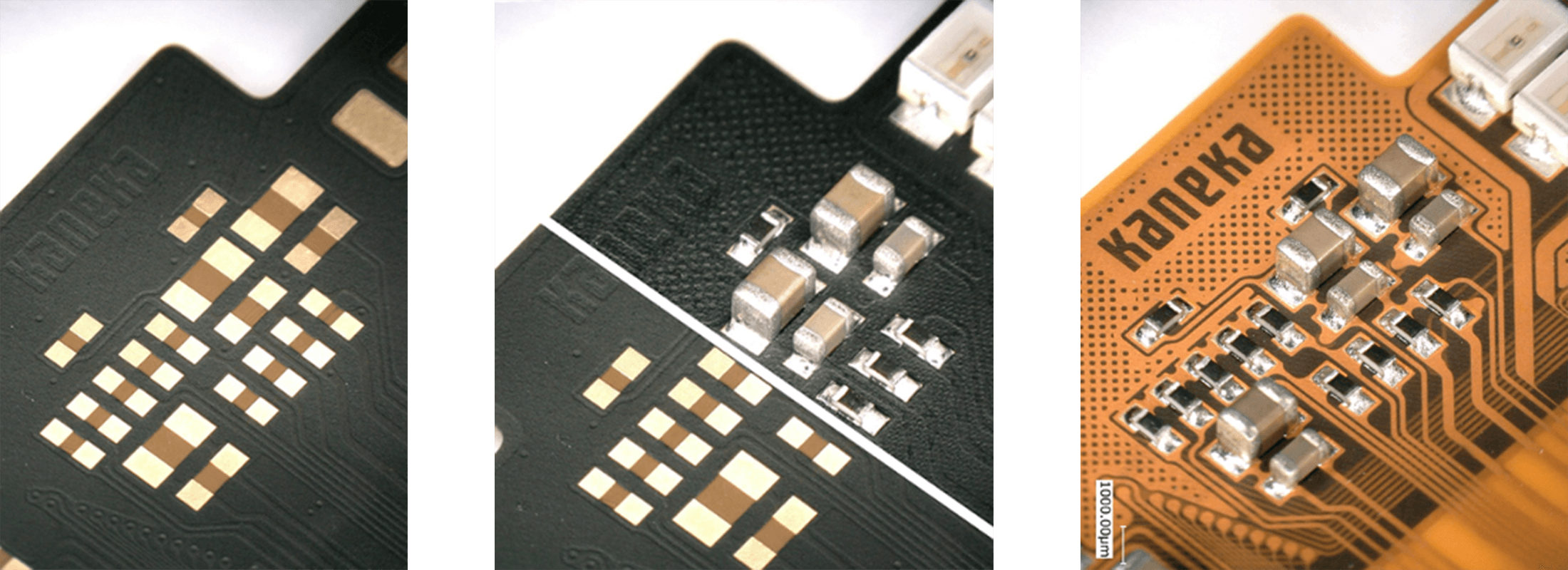

Cover coat ink is ideal for circuit pattern protection and insulation of flexible printed circuit boards as it has good photo seneitivity and patterning dimensional control by exposing to ultraviolet rays.

Can be used in place of existing coverlay films
Good low spring-back property
Enables simplification of the manufacturing process of circuit boards
Possible to propose the optimal coating method for each application

Examples of Use

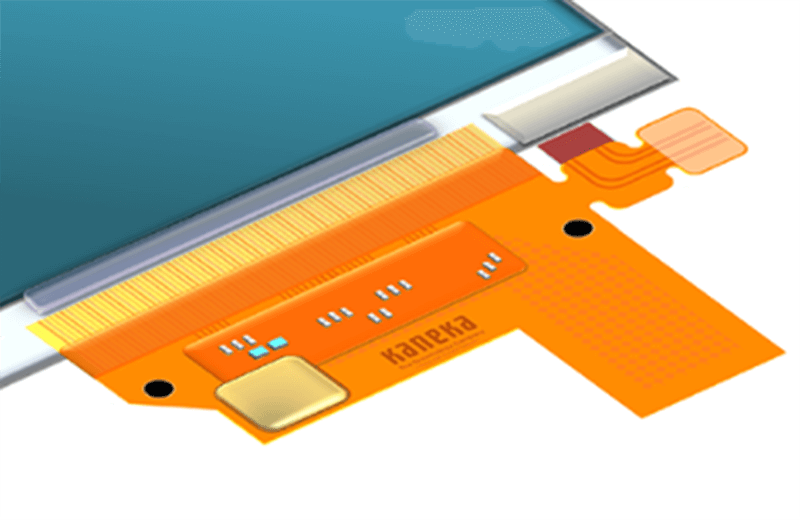

It can be used in place of existing coverlay films for circuit pattern protection and insulation of flexible printed circuit boards used in smartphone displays, which require low spring-back property.

Low spring-back property

Good low spring-back property even after heating in the component mounting process

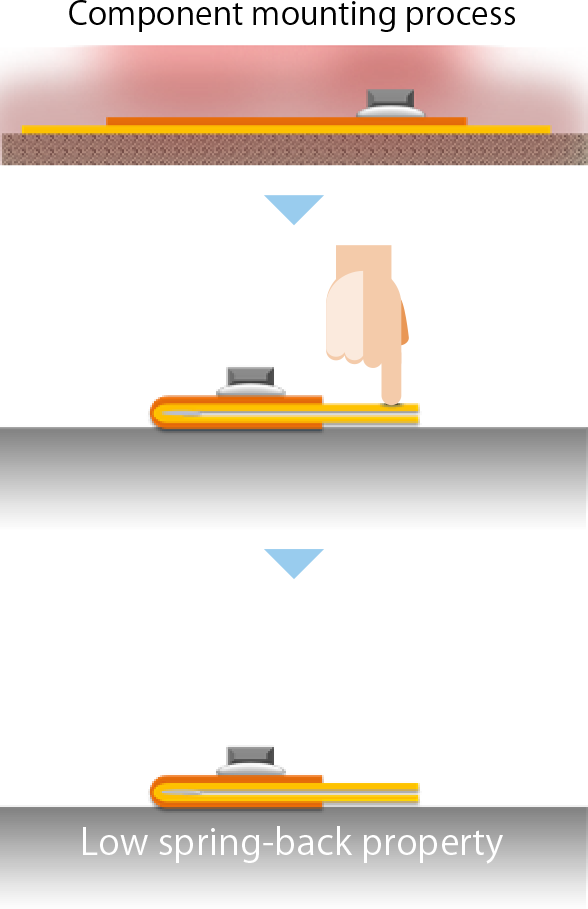

When using cover coat ink

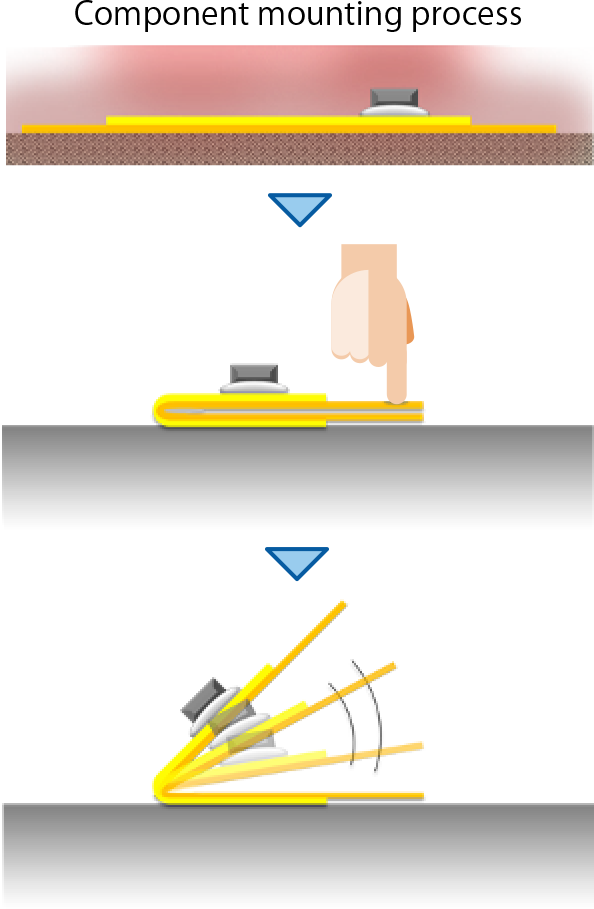

When coverlay film is used

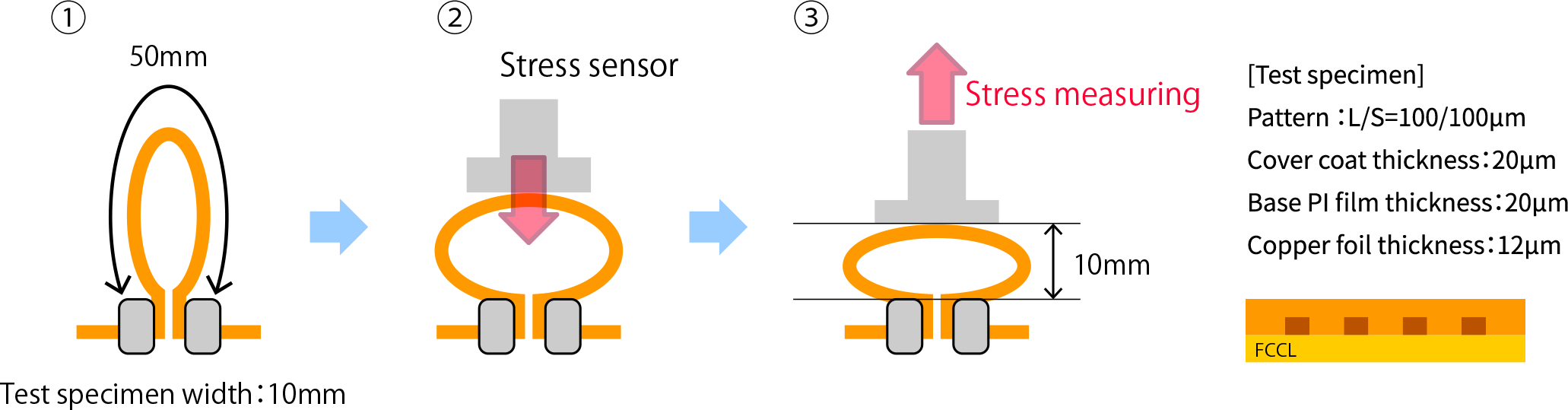

spring-back property

Lower spring-back property than coverlay film.

Simplification of circuit board manufacturing process

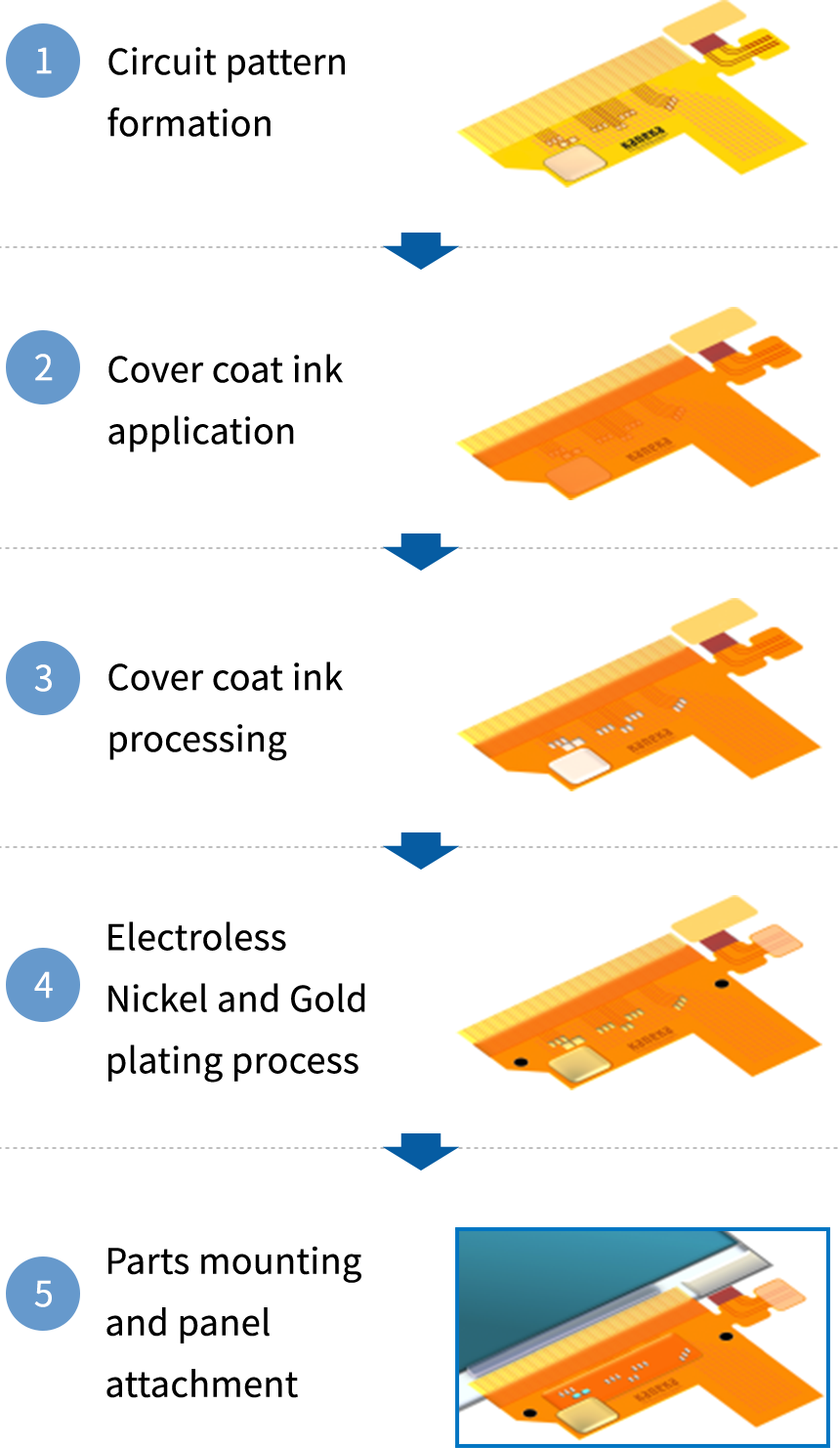

Manufacturing process of cover coat ink

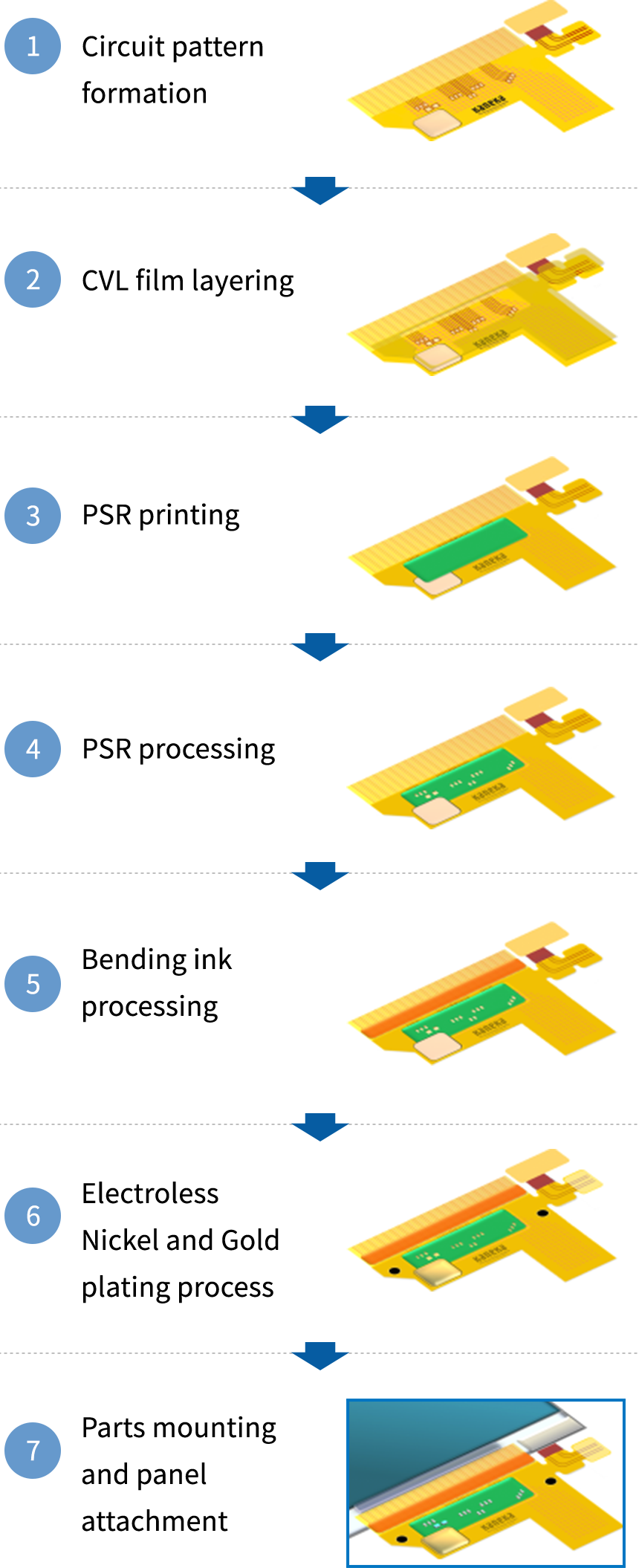

Existing manufacturing process

　Process diagram of existing
and cover coat ink

【Precautions for Use】

The above mentioned product is intended for non-food applications.
Please inform us what the application is in advance so to ensure the best possible technical support regarding safety.
The information contained herein is based on materials, information and data available at this time and is subject to revision based on new findings.
In addition, the precautions listed are intended for normal handling, and if special handling is required, please take specific safety precautions apt for your application and usage.
The information contained herein is provided for informational purposes only and is not guaranteed.
